From the Field: insulation and windows

Here's an update for the Oak Park home in construction--it's been a busy time with roofing, insulation, overhangs, exterior insulation, weather barrier, and windows. First thing after the air barrier (Prosoco, the pink stuff painted on the outside of the plywood) was to frame the overhangs, so they could get a roof on.
west (front) facade

6x6 cedar brackets
Then the polyisocyanurate exterior insulation went up:
working to the corner; there are two layers of polyiso and it's important to stagger the seams

wrapped up tight--polyiso flushes out with window bucks
The roof went on, and the polyiso was wrapped with a Delta weather resistive barrier:
roof is on, wrapped up in stylish black WRB with Prosoco-red trim, and we have a front slab

street facade--someday that plywood will be a real front door
The light and space at the stair is nice to be in:
interior of south facade above stair with Garrett and Rudy from the office

from stair to front bedroom--light!
And no Passive blog would be complete without some photos of the windows going in. These are Zola Thermo uPVC, an incredible value for Passive House performance. They're tilt-tun (open in) windows with jamb clips for fixing:

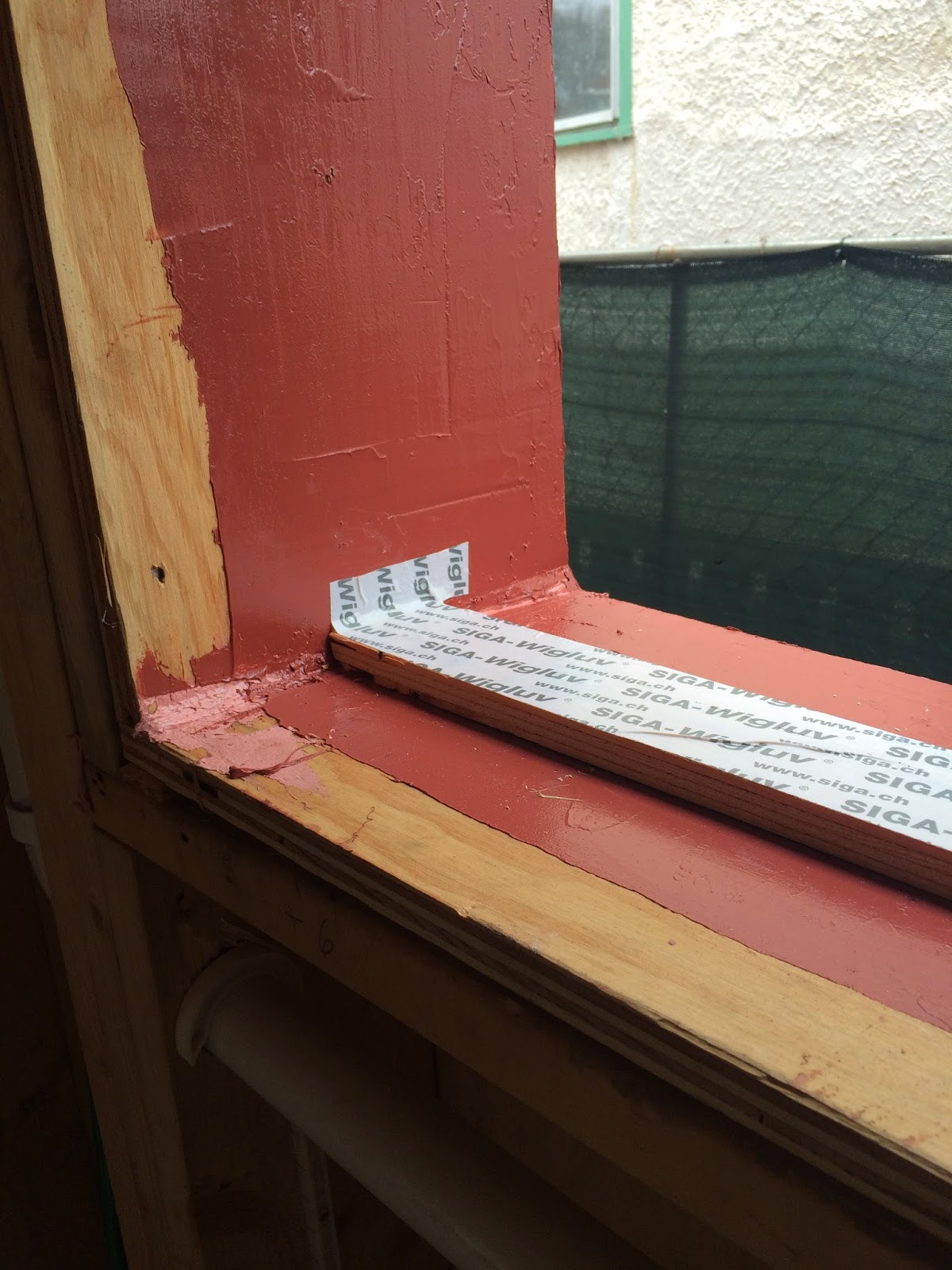

sill prepared for install--note how air barrier membrane runs to the interior of window plane

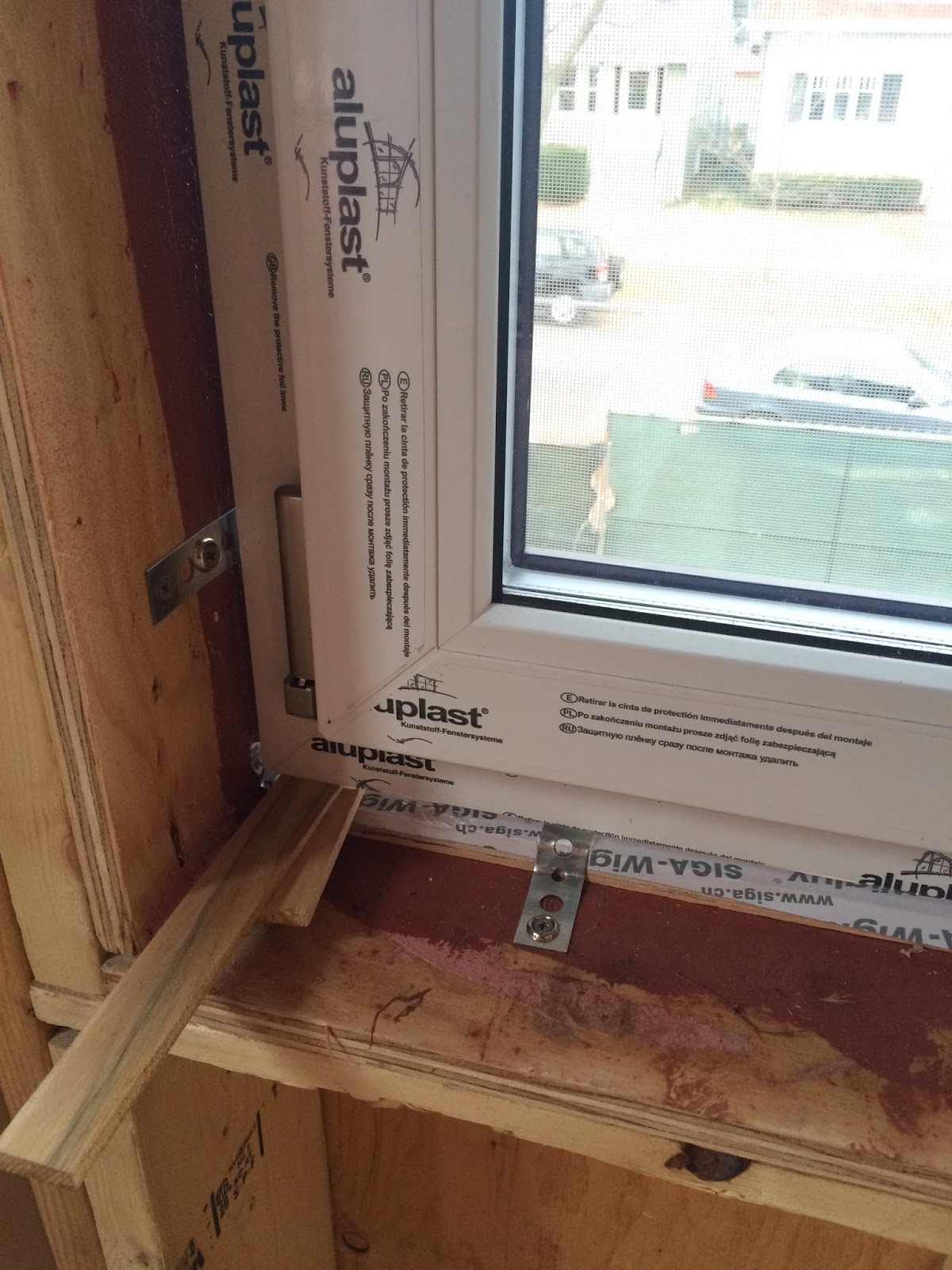

jamb clips screwed to framing; next a backer rod and sealant will make the openings airtight
That's it for this install--next will show rough mechanicals.
