We have two new Passive projects in construction now, "Acorn Glaede" in Downers Grove, and a not-yet-named house in Hinsdale. They both started in the summer; Downers is a slab-on-grade, but Hinsdale has a full basement. Here are some compare-and-contrast images, starting with Hinsdale (we didn't get to the site before framing started):
 |
| on PHIUS tour--basement at Hinsdale; note 8" EPS outside exposed concrete foundation |
 |
| The Architect considers the foundation-wall joint |
 |
| 2x6 framing with Zip sheathing as airtight layer, 5.25" EPS outboard, flush with exterior face of 2x12 bucks |
 |
| South facade--seen from alley, garage to left begun |
 |
| From northwest |
 |
| East facade--the "modern farmhouse" look taking shape |
 |
| Using Rosboro X-Beams: no-added formaldehyde glulams |
Now for Downers Grove:
 |
| Frost-depth foundation with 8" exterior, 4" interior EPS; note separation of exterior porch with insulation--no thermal bridge |
 |
| Closeup of corner |
 |
| Slab poured, StegoWrap in place |
 |

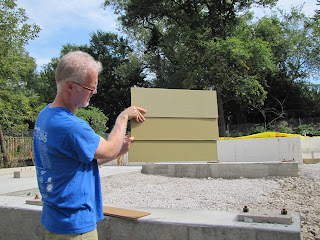

| Tom with initial color studies for prefinished color-mix on LP SmartSide siding |
 |
| Walls going up! 2x6 wall framing; note 2x12 bucks at openings, like Hinsdale...a favorite detail |
 |
| Second floor walls--that oak tree behind was a major driver of plan layout |
 |
| View from Living Room through south windows to the other great oak tree |
 |

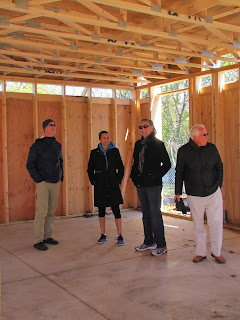

| With owner and her parents... |
 |

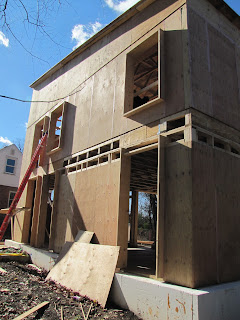

| Big bucks on the east wall |
 |

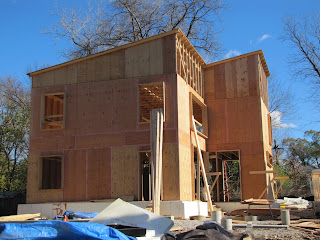

| Capped out before the cold hit! |
That's it for now--more to come as these get enclosed and finished!
